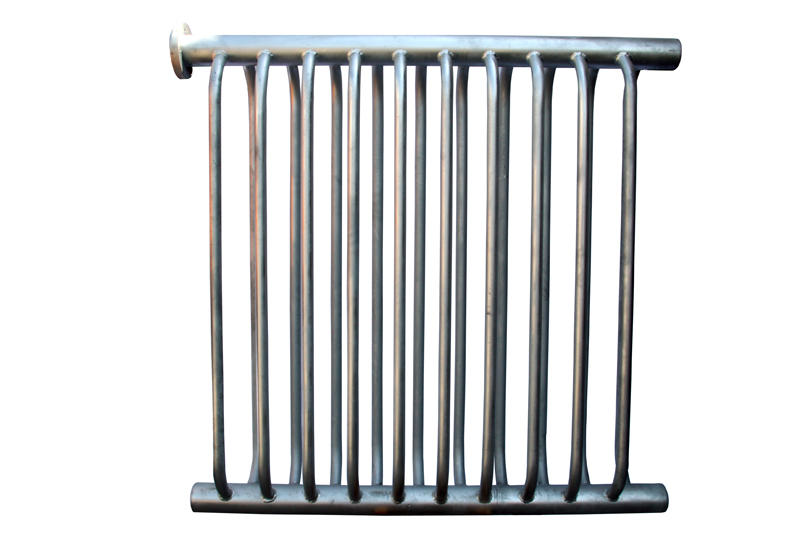

1、總述 General Description

  LF型光管加熱器在空調系統中對空氣進行預處理和再處理?？諝獗凰幚砬坝霉夤芗訜崞鬟M(jìn)行加熱，則為預熱器，以提高空氣溫度，提高加濕能力?？諝獗凰幚砗笥霉夤芗訜崞鬟M(jìn)行加熱，則為再熱器，以補償車間熱量的不足。

  光管加熱器可以串聯或并聯安裝。當被加熱的空氣量少而要求溫升高，可采用串聯形式，反之則可采用并聯形式。

  光管加熱器主管為φ108×3，散熱管為φ27×2.5，用均采用無縫鋼管焊制而成，出廠時經嚴格的壓力試驗，安全可靠。

LF model plain pipe heater is used in air conditioning system for air pre and re-heating treatment. Air is heated by plain pipe heater before water treatment. Plain pipe plays the role of pre-heater to improve air temperature and humidifying ability. When plain pipe is applied after water air treatment, it plays the role of re-heater to compensate heat shortage in plant.

LF model plain pipe heater can be installed in series or parallel connections. When air capacity is low, series connection is applied,. Otherwise, parallel connection can be applied.

Plain pipe heater is welded by seamless steel tube, pressure test of which has been taken to ensure safety and reliability. Diameter of the main pipe isφ108×3, radiating pipeφ27×2.5.

2、型號及常用規格：Type and specifications:

型號:LFG-B×H Type

常用規格:Standard specifications:

LFG-1500×1500、2000×2000、2000×2500、2500×2000、2500×2500

光管加熱器可以串聯或并聯安裝 Plain pipe heater can be assembled in series or in parallel.

其余規格可根據要求定制 Can be custom-made according to customer’s requirements.

3、主要配置：Main Configuration:

  鍍鋅無縫管，主管Φ108，支管Φ32 Galvanization seamless tube, main tube Φ108，branch tube Φ32.

4、技術參數：Technical specifications

5、安裝要求 Assembly requirements

  焊接部位焊縫連續均勻，無虛焊。支管間距均勻，排列平整。

Smooth welding everywhere, no cold solder joint. Even distances between branch tubes, ordered and smoothly arrayed.

6、檢驗標準： Inspection Criteria

  光管加熱器固定牢固，疏水器位于最低點。

  需通過壓力測試。無滲漏現象。

Firmly fixed, water drainer at the lowest point.

Must though pressure test, no leakage.

7、外形簡圖及安裝示意圖 Outer figure and assembly requirements

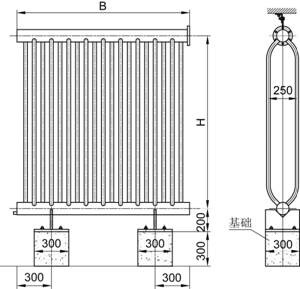

圖八 光管加熱器簡圖

Sketch 8  Structure diagram of plain pipe heater
